Drying cabinets

ProLine FC20

Name: ProLine FC20
Brand: PODAB International
Availability: OutOfStock

The ProLine drying cabinet series offer versatile, energy-efficient drying solutions for various industries. Designed to handle everything from workwear and uniforms to PPE, they provide gentle, effective drying without mechanical wear. Ideal for professional and industrial use, ensures fast, reliable results while preserving fabric quality.

The ProLine FC20 drying cabinet is purpose-built for PPE, serving critical industries like fire departments, military, and oil & gas. Its versatile hanging options accommodate various equipment types, ensuring tailored drying. With gentle yet efficient drying, gear integrity is preserved. Built for reliability, its robust construction meets the rigorous demands of demanding industries, ensuring safety and performance in critical situations.

location_onFind a reseller

Product number: 131035

Main data

Product type: Drying cabinet
Product name: ProLine FC20
Product no.: 131035
Warranty: Three-year limited
Type: Air vented
Capacity, sets of turnout gear: 6
Capacity (dry weight), lb/kg: 44/20
Interior capacity, cu ft/l: 73,1/2070
Noise emission, dB(A): 65

Electrical Installation

Supply voltage, V: 3~N/400V/50Hz
Electric heating, W: 12000
Electric fan, W: 500
Total effect, W: 12500
Protection, A: 20

Specifications

Outer: WxDxH, in: 71x31.5x77
Outer: WxDxH, mm: 1800x800x1955
Shipping dimensions: WxDxH, in: 75x31x42
Shipping dimensions: WxDxH, mm: 1915x790x1060
Weight, lb: 441
Weight, kg: 200
Shipping weight, lb: 528
Shipping weight, kg: 240
Minimum ceiling height, in/mm: 87/2215
Doors open, °: 190

Drying 6 suits with membrane/liners

Drying time, min: 166
Drying capacity, oz/min / g/min: 2/55
Energy consumption, kWh: 19.6
Residual moisture before drying, %: 70
Residual moisture after drying, %: 4

Drying 6 suits without membrane/liners

Drying time, min: 85
Drying capacity, oz/min / g/min: 1.6/46
Energy consumption, kWh: 6.8
Residual moisture before drying, %: 15
Residual moisture after drying, %: 0

Manuals

picture_as_pdf
User manual FC20
downloadDownload quick_reference_allPreview

Product sheet

picture_as_pdf
Product sheet ProLine drying cabinet FC20
downloadDownload quick_reference_allPreview

Key features

High capacity & versatile design
Dries up to 6 complete PPE suits with 6 slots for interchangeable hangers with integrated airflows.
Advanced drying system
- Automatic & manual programs
- Preset start time
- Dual drying system for efficient and safe PPE drying
- Electric heated air drying
Efficiency & safety
- Energy-efficient
- Gentle drying without mechanical action
- Double overheat protection
- Cool down mode at program end
Durability & convenience
- Powder-coated galvanized steel
- Interior lighting
- Versatile hanging options for added flexibility

Gentle and effective drying

Experience complete and safe drying without mechanical action. Our gentle yet efficient drying process maintains the integrity of protective gear, ensuring it stays in excellent condition for peak performance.

High-efficiency PPE drying with advanced technology

The ProLine FC20 is equipped with an advanced air circulation system that facilitates inside-out drying, ensuring quick and effective moisture removal from PPE. Its dual drying process circulates hot air through interchangeable hangers while simultaneously distributing air within the cabinet. This energy-efficient system ensures even drying and improves safety for protective gear.

arrow_right_altLearn more about our dual drying system

Flexible hanging solutions

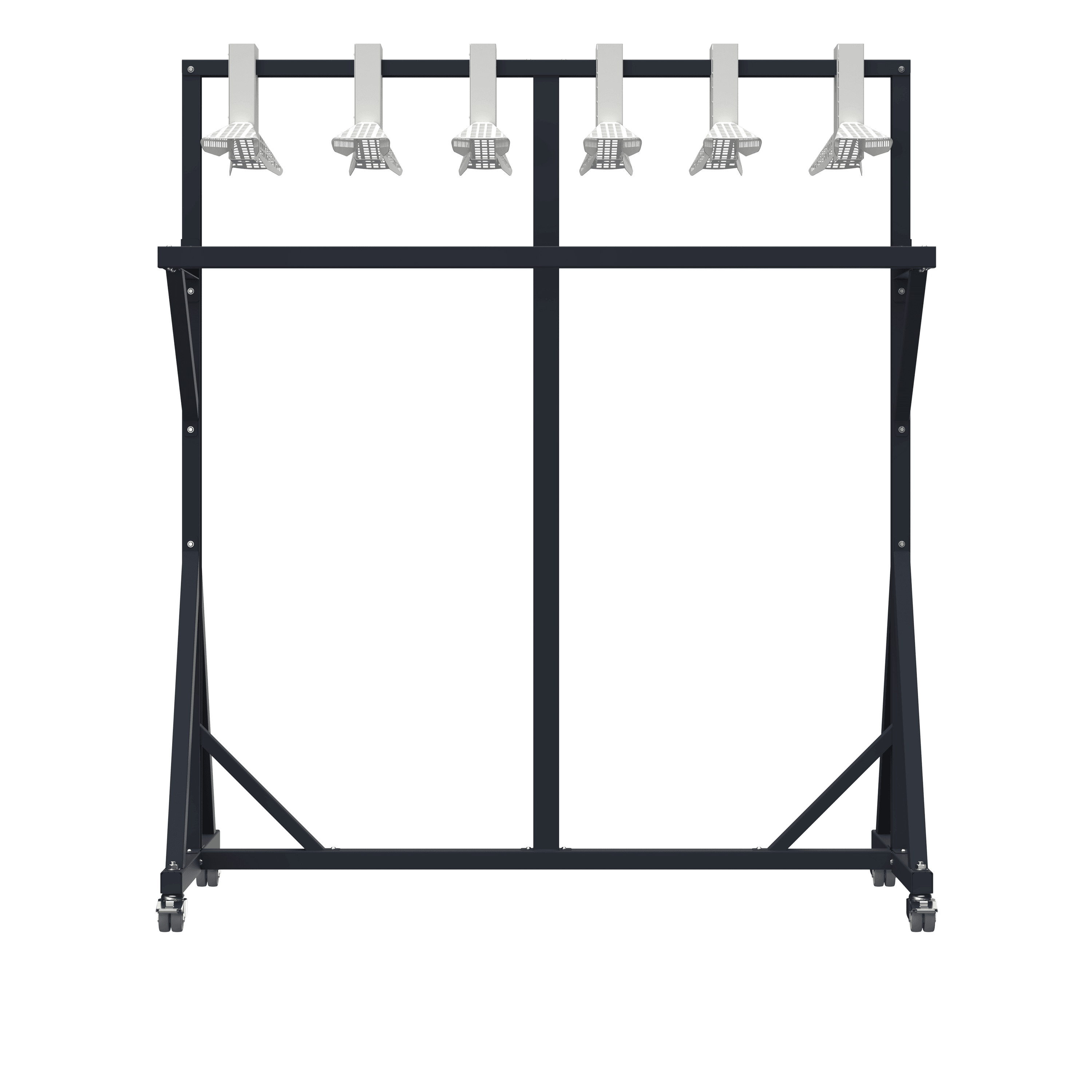

Customize your drying setup with interchangeable hangers designed to accommodate a wide range of firefighting gear and accessories. The ProLine FC20 offers maximum flexibility with a versatile, customizable interior tailored to meet the unique drying needs of the fire and rescue industry. Easily swap suit hangers for specialized boot or glove hangers, ensuring optimal drying for all critical equipment. Capable of drying up to six turnout suits simultaneously without compromising their integrity, the FC20 helps preserve gear performance and longevity. Door-mounted hook racks offer additional drying space for smaller items, further increasing adaptability for various firefighting essentials.

Extend the lifespan of your PPE with

64%

Tailored design for protective gear care

The ProLine FC20 drying cabinet is carefully designed to meet the drying needs of PPE. Specifically built for environments like fire departments, military operations, and the oil & gas industry, this cabinet is a vital tool for maintaining the longevity and effectiveness of essential gear.

Equipped with a Humidity Tracking System (HTS), the ProLine FC20 features sensors that monitor both temperature and humidity. It detects moisture levels and automatically halts the drying process once the laundry reaches optimal dryness, ensuring both time and energy efficiency.
