ProLine FC20

Drying cabinets

The ProLine drying cabinet series offer versatile, energy-efficient drying solutions for various industries. Designed to handle everything from workwear and uniforms to PPE, they provide gentle, effective drying without mechanical wear. Ideal for professional and industrial use, ensures fast, reliable results while preserving fabric quality.

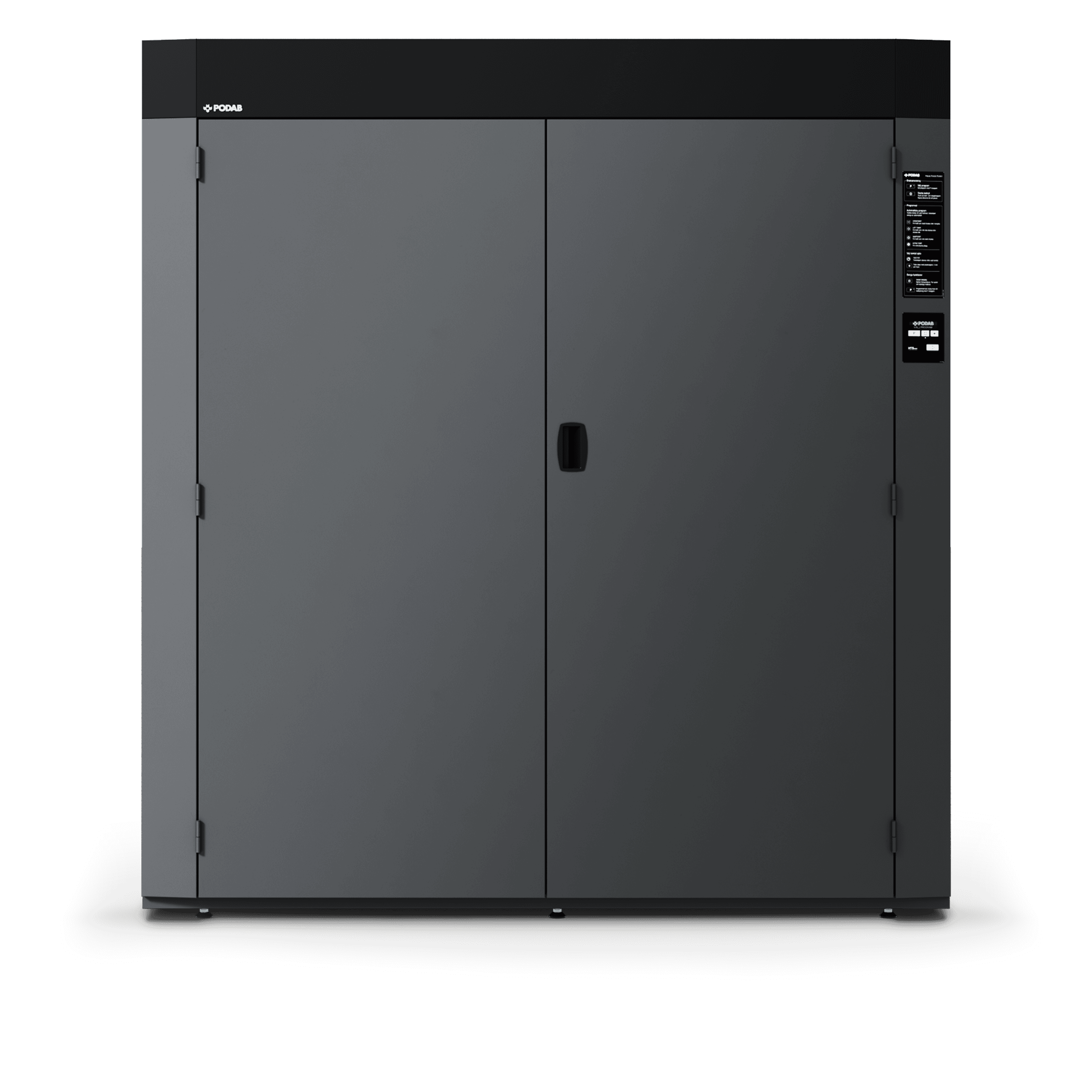

The ProLine FC20 drying cabinet is purpose-built for PPE, serving critical industries like fire departments, military, and oil & gas. Its versatile hanging options accommodate various equipment types, ensuring tailored drying. With gentle yet efficient drying, gear integrity is preserved. Built for reliability, its robust construction meets the rigorous demands of demanding industries, ensuring safety and performance in critical situations.

Product number: 232001

Main data

Product type
Drying cabinet
Product name
ProLine FC20
Product No. 3P electrical connection
232001
Product No. 1P electrical connection
232004
Warranty
Three-year limited
Type
Air vented
Capacity, sets of turnout gear
6
Capacity (dry weight), lb/kg
55/25
Interior capacity, cu ft/l
73,1/2070
Energy consumption, kWh
6.7
Drying capacity, oz/min / g/min
2/55
Noise emission, dB(A)
65

Electrical Installation 3P

Supply voltage, V
208 V, 3P, 60Hz/240 V, 3P, 60Hz
Electric heating, W
9000/12000
Electric fan, W
450/525
Total effect, W
9450/12525
Protection, A
40/40

Electrical installation 1P

Supply voltage, V
208 V, 1P, 60Hz
Electric heating, W
9000
Electric fan, W
525
Total effect, W
9525
Protection, A
60

Specifications

Outer: WxDxH, in
71x31.5x77
Outer: WxDxH, mm
1800x800x1955
Shipping dimensions: WxDxH, in
75x31x42
Shipping dimensions: WxDxH, mm
1915x790x1060
Weight, lb
441
Weight, kg
200
Shipping weight, lb
528
Shipping weight, kg
240

Manuals

Product sheet

Product booklet

Key features

  • High capacity & versatile design

    Dries up to 6 complete PPE suits with 6 slots for interchangeable hangers with integrated airflows.
  • Advanced drying system

    • Automatic & manual programs

    • Preset start time

    • Dual drying system for efficient and safe PPE drying

    • Electric heated air drying

  • Efficiency & safety

    • Energy-efficient

    • Gentle drying without mechanical action

    • Double overheat protection

    • Cool down mode at program end

  • Durability & convenience

    • Powder-coated galvanized steel

    • Interior lighting

    • Versatile hanging options for added flexibility

Gentle, yet efficient drying

Experience thorough and safe drying without the need for mechanical action. Our gentle yet efficient drying process preserves the integrity of protective gear, ensuring it remains in top condition for optimal performance.

Advanced PPE drying with maximum efficiency

The ProLine FC20 features an advanced air circulation system that enables inside-out drying, ensuring fast and effective moisture removal from PPE. Its dual drying process distributes hot air through interchangeable hangers while simultaneously circulating air within the cabinet. This energy-efficient system promotes even drying and enhanced safety for protective gear.

arrow_right_altLearn more about our dual drying system

Versatile hanging options

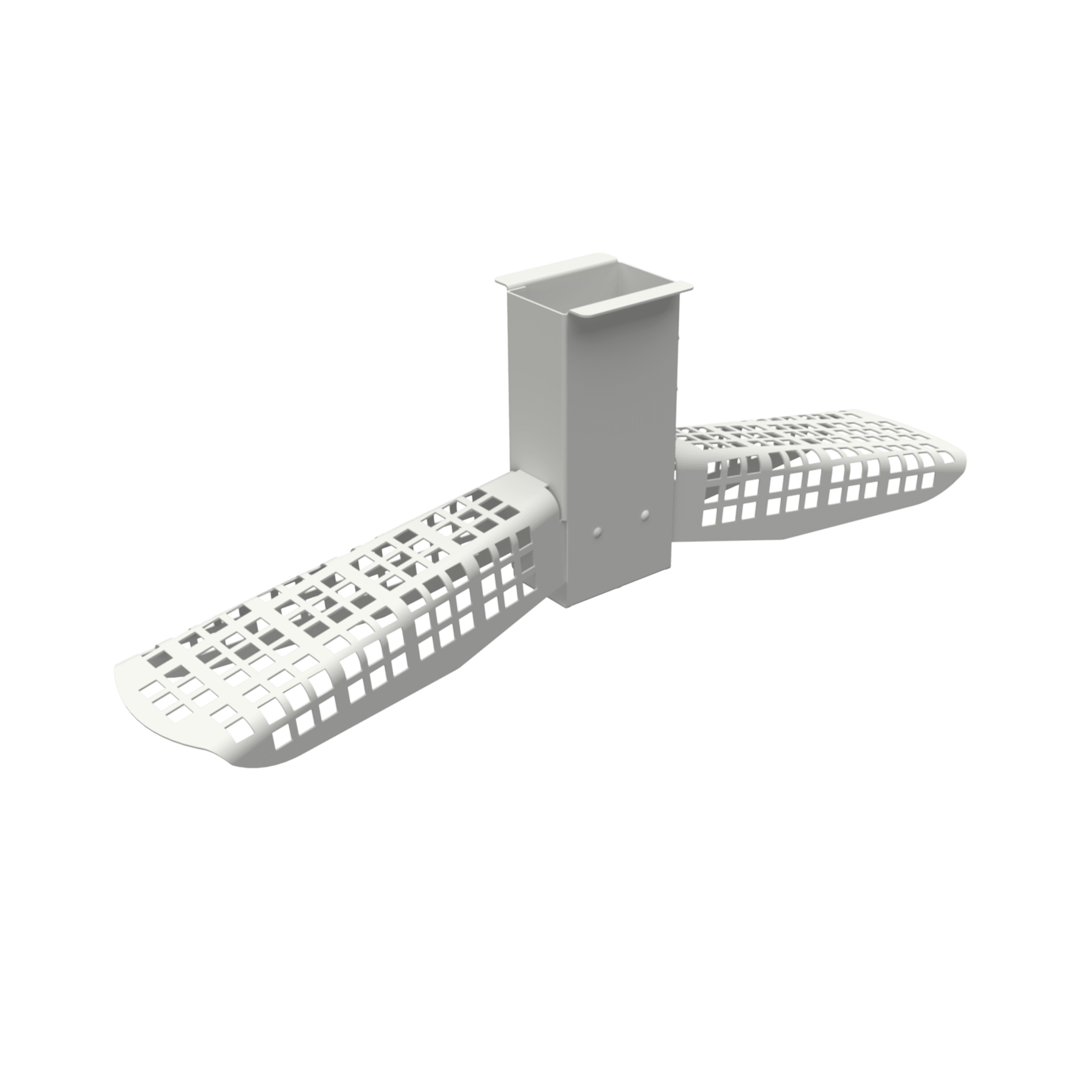

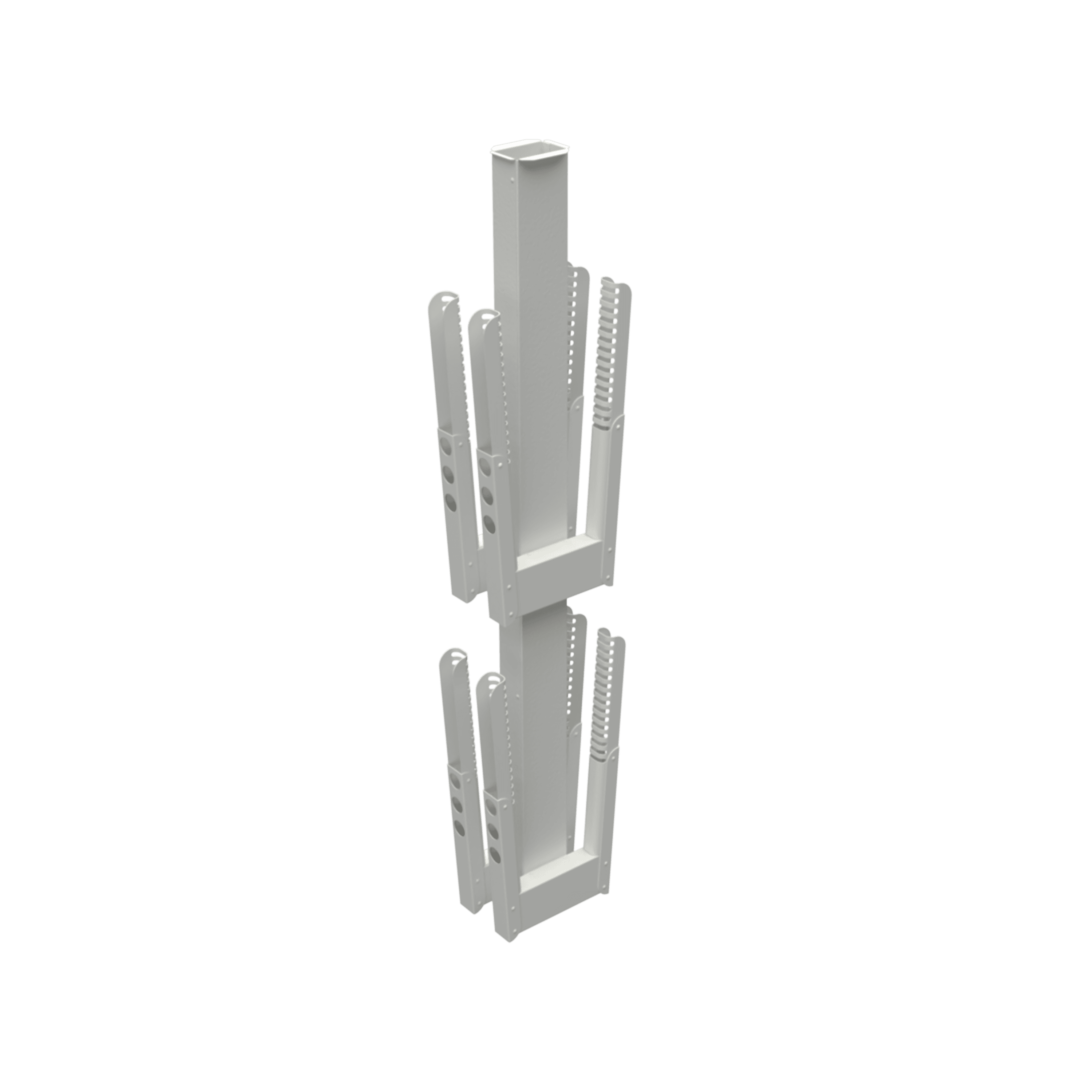

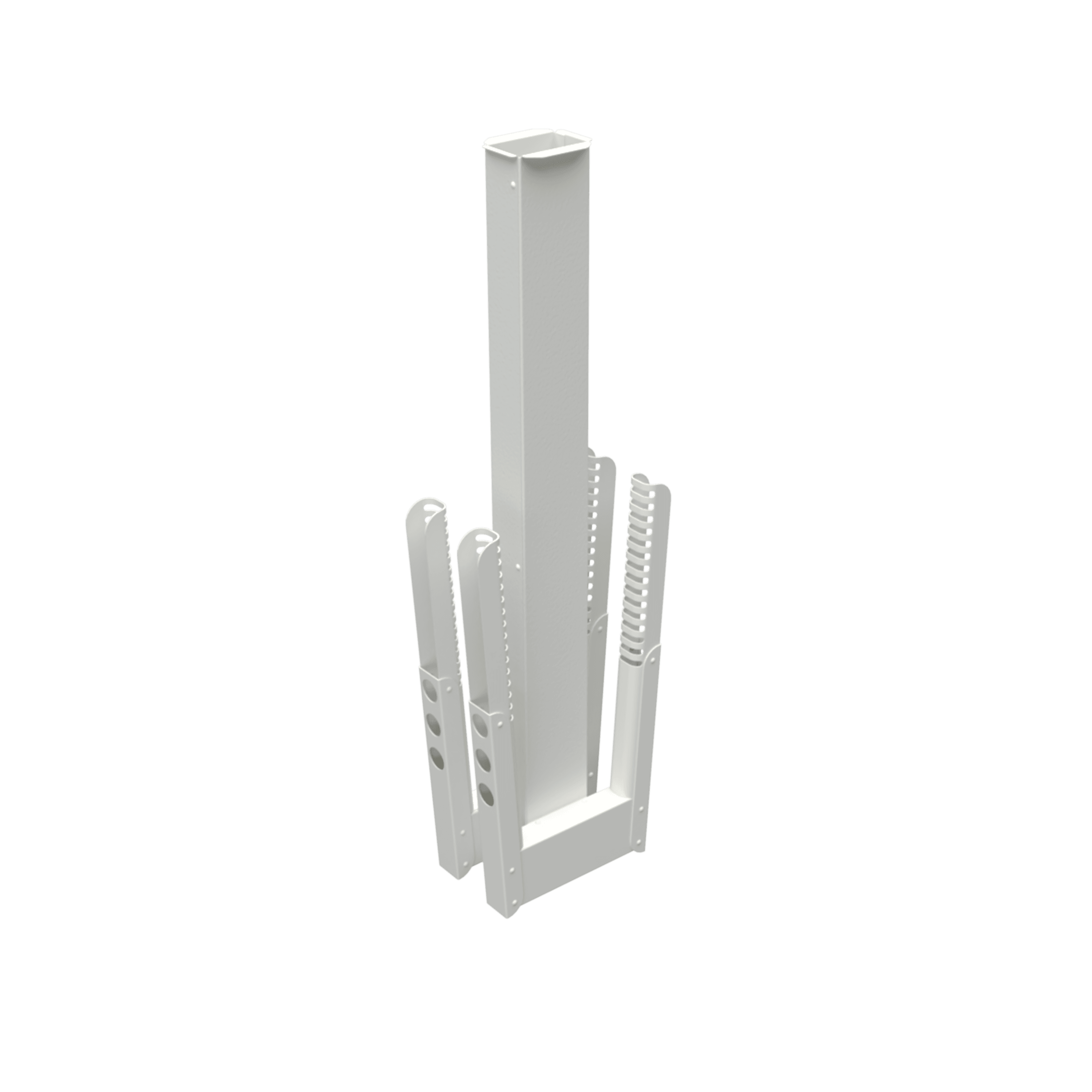

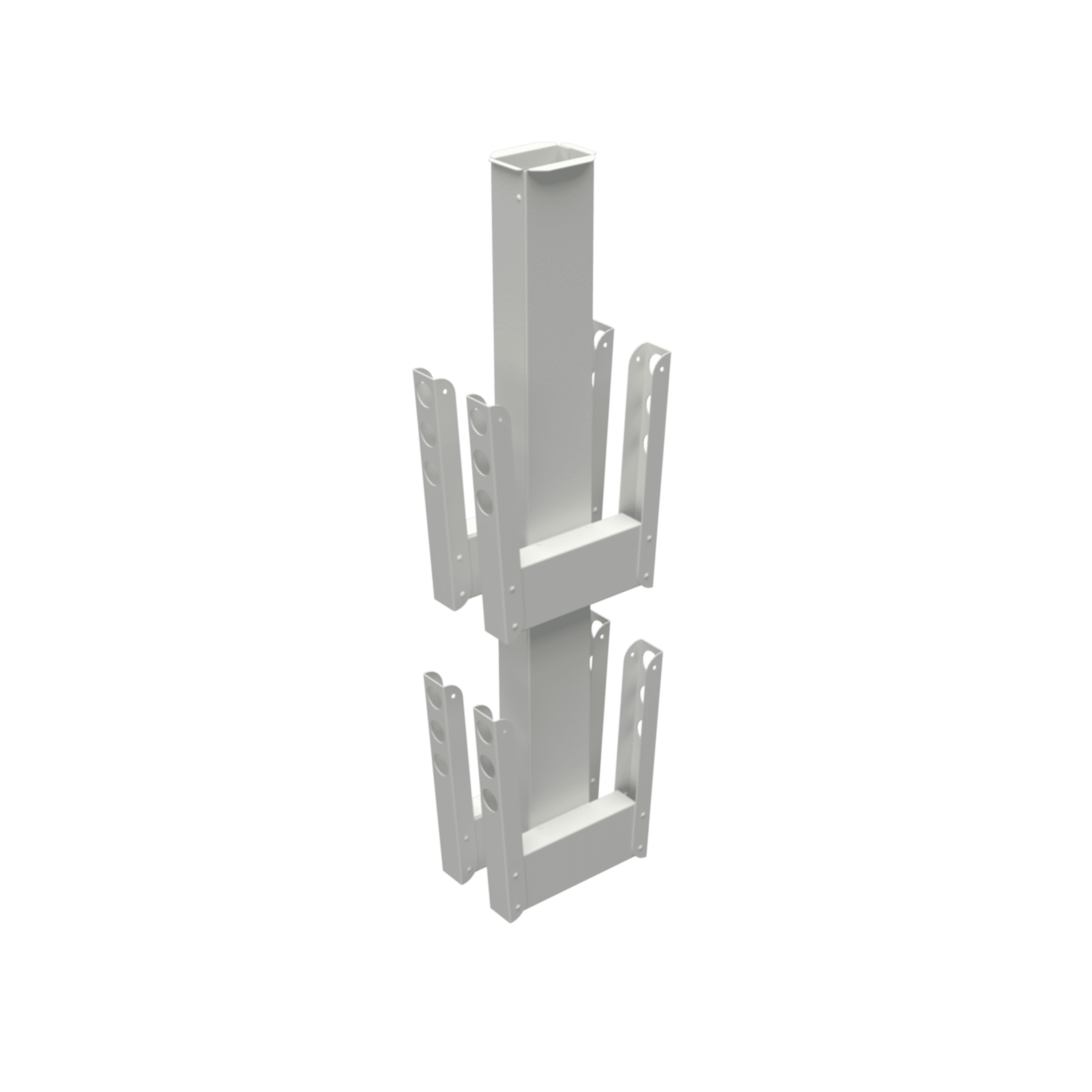

Customize your drying setup with interchangeable hangers designed for a wide range of firefighting gear and accessories. ProLine FC20 delivers maximum flexibility with a versatile, customizable interior to meet the unique drying demands of the fire and rescue industry. Easily swap suit hangers for specialized boot or glove hangers, ensuring optimal drying for all essential equipment. Capable of efficiently drying up to six turnout suits at once without compromising their integrity, the FC20 maintains gear performance and longevity. Door-mounted hook racks provide additional drying space for smaller items, further enhancing adaptability for various firefighting essentials.

Extend the lifespan of your PPE with

64%

Purpose-built design for protective gear

The ProLine FC20 drying cabinet is meticulously crafted to cater to the drying needs of PPE. Designed specifically for environments such as fire departments, military operations, and oil & gas industries, this cabinet is an indispensable tool for ensuring the longevity and effectiveness of essential gear.

Features a Humidity Tracking System (HTS) with sensors that monitor both temperature and humidity. It detects moisture levels and automatically stops the drying process once the laundry reaches optimal dryness, ensuring time and energy efficiency.

Humidity and temperature tracking

NFPA compliant

Revolutionizing firefighter safety

Our drying cabinet embodies a fresh perspective on firefighter safety, prioritizing their well-being by reducing health risks associated with damp gear. Aligned with NFPA standards, it exceeds requirements, prolonging gear lifespan while promoting resource efficiency. Its innovative features represent a paradigm shift in safety, reflecting a commitment to invest in cutting-edge solutions for a safer future, acknowledging firefighters’ dedication to community protection.

All ProLine drying cabinets are NFPA compliant.

arrow_right_altLearn more about NFPA
