Drying cabinets

ProLine TS63 E

TS43 ETS63 ETS93 EFC20

The ProLine drying cabinet series offer versatile, energy-efficient drying solutions for various industries. Designed to handle everything from workwear and uniforms to PPE, they provide gentle, effective drying without mechanical wear. Ideal for professional and industrial use, ensures fast, reliable results while preserving fabric quality.

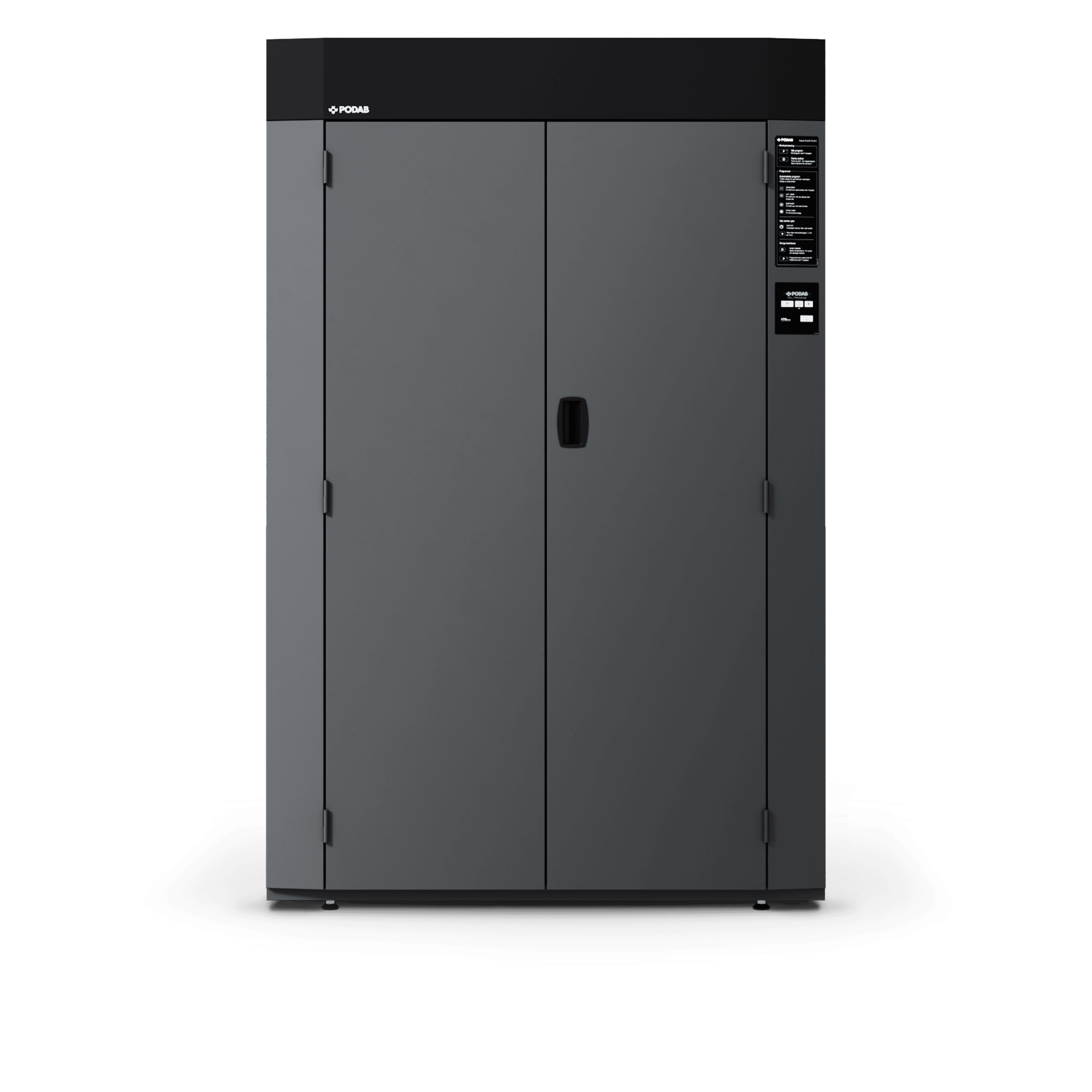

The ProLine TS63 E drying cabinet offers gentle and energy-efficient drying technology, perfect for all textiles and PPE. The ProLine drying cabinets are utilizing a drying process without mechanical action to prevent damage and in turn extend the lifespan of your laundry. With a spacious 37.7 cu ft capacity, it efficiently dries various textiles and accessories. Equipped with versatile interior options like swinging rails or ventilated shelves, it ensures flexibility to accommodate specific drying requirements.

location_onFind a reseller
Product number: 234002

Main data

Product type
Drying cabinet
Product name
ProLine TS63 E
Product no.
234002
Warranty
Three-year limited
Type
Air vented
Hanging length, ft/m
52.5/16
Capacity (dry weight), lb/kg
22/10
Interior capacity, cu ft/l
34.7/983
Energy consumption, kWh
3.0
Drying capacity, oz/min / g/min
2.2/62
Noise emission, dB(A)
62
Prepared for payment system
Standard
Reversable swinging hanging rail system
Standard

Electrical Installation

Supply voltage, V
240 V, 1P, 60Hz
Electric heating, W
4500
Electric fan, W
350
Total effect, W
4850
Protection, A
30

Specifications

Outer: WxDxH, in
47x25.2x74
Outer: WxDxH, mm
1200x640x1870
Shipping dimensions: WxDxH, in
49x28x81
Shipping dimensions: WxDxH, mm
1250x700x2050
Weight, lb
320
Weight, kg
145
Shipping weight, lb
351
Shipping weight, kg
159

Ventilation

Outlet exhaust, Øin/mm
6/152
Outlet airflow, cfm/m³/h
135/230
Max pressure drop, psf/Pa
1.46/70
Max airflow (at 0% pressure), cfm/m³/h
200/340

Manuals

Product sheet

Product booklet

Key features

  • Capacity & design

    • 18 lbs dry weight

    • 37.7 cu ft interior

    • 52.5 ft hanging length

    • Rotating hanging rail (180°) with doors opening 190°

  • Advanced drying system

    • Automatic & manual programs

    • Preset start time

    • Temperature & humidity tracking

    • Electric heated air drying

  • Efficiency & safety

    • Energy-efficient

    • Gentle drying without mechanical action

    • Double overheat protection

    • Cool down mode at program end

  • Durability & versatility

    • Powder-coated galvanized steel

    • Sturdy construction

    • Interior lighting

    • Versatile drying options for delicate and hard-to-dry textiles

Gentle drying technology

The ProLine TS63 E drying cabinet, an innovative and energy-efficient option designed to dry textiles with care. Utilizing a gentle drying process without mechanical action, making it perfect for delicate or hard to dry garments that should not be tumble dried. Eliminate any concerns regarding damaging your fabrics – the TS63 E drying cabinet offers a safe and effective alternative.

Versatile drying options

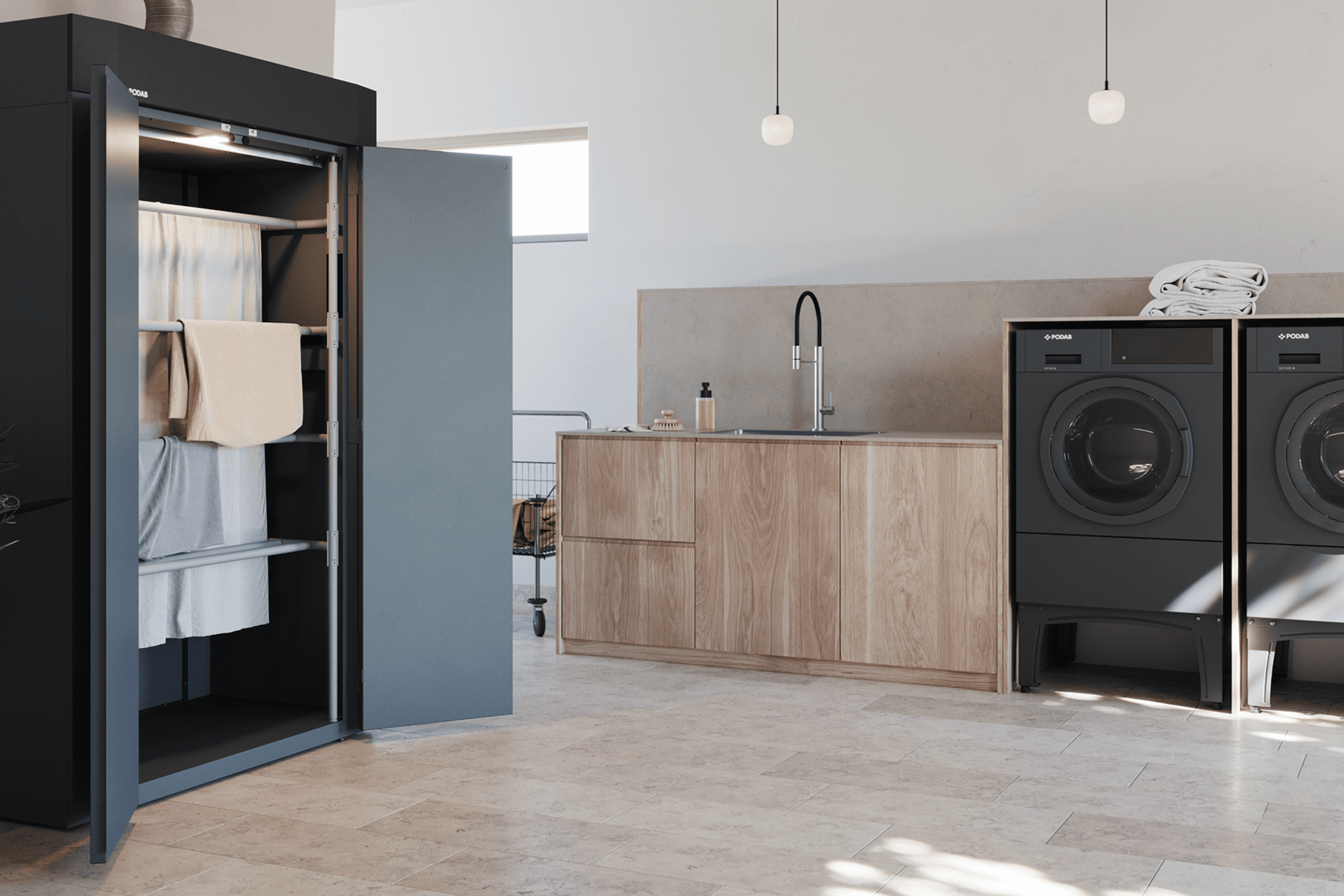

The ProLine TS63 E can be equipped with a swinging rail system for easy access, customized with a single bar for standard hangers, or equipped with ventilated shelves for drying accessories that cannot be hung. This versatility ensures maximum flexibility to suit your specific drying needs.

Optimal energy efficiency

The ProLine TS63 E is exceptionally energy-efficient, helping to reduce both costs and environmental impact. Its innovative design ensures optimal performance while minimizing energy consumption, making it a sustainable choice for any laundry operation.

Features a Humidity Tracking System (HTS) with sensors that monitor both temperature and humidity. It detects moisture levels and automatically stops the drying process once the laundry reaches optimal dryness, ensuring time and energy efficiency.

Humidity and temperature tracking

NFPA compliant

Revolutionizing firefighter safety

Our drying cabinet embodies a fresh perspective on firefighter safety, prioritizing their well-being by reducing health risks associated with damp gear. Aligned with NFPA standards, it exceeds requirements, prolonging gear lifespan while promoting resource efficiency. Its innovative features represent a paradigm shift in safety, reflecting a commitment to invest in cutting-edge solutions for a safer future, acknowledging firefighters’ dedication to community protection.

All ProLine drying cabinets are NFPA compliant.
