Drying cabinets

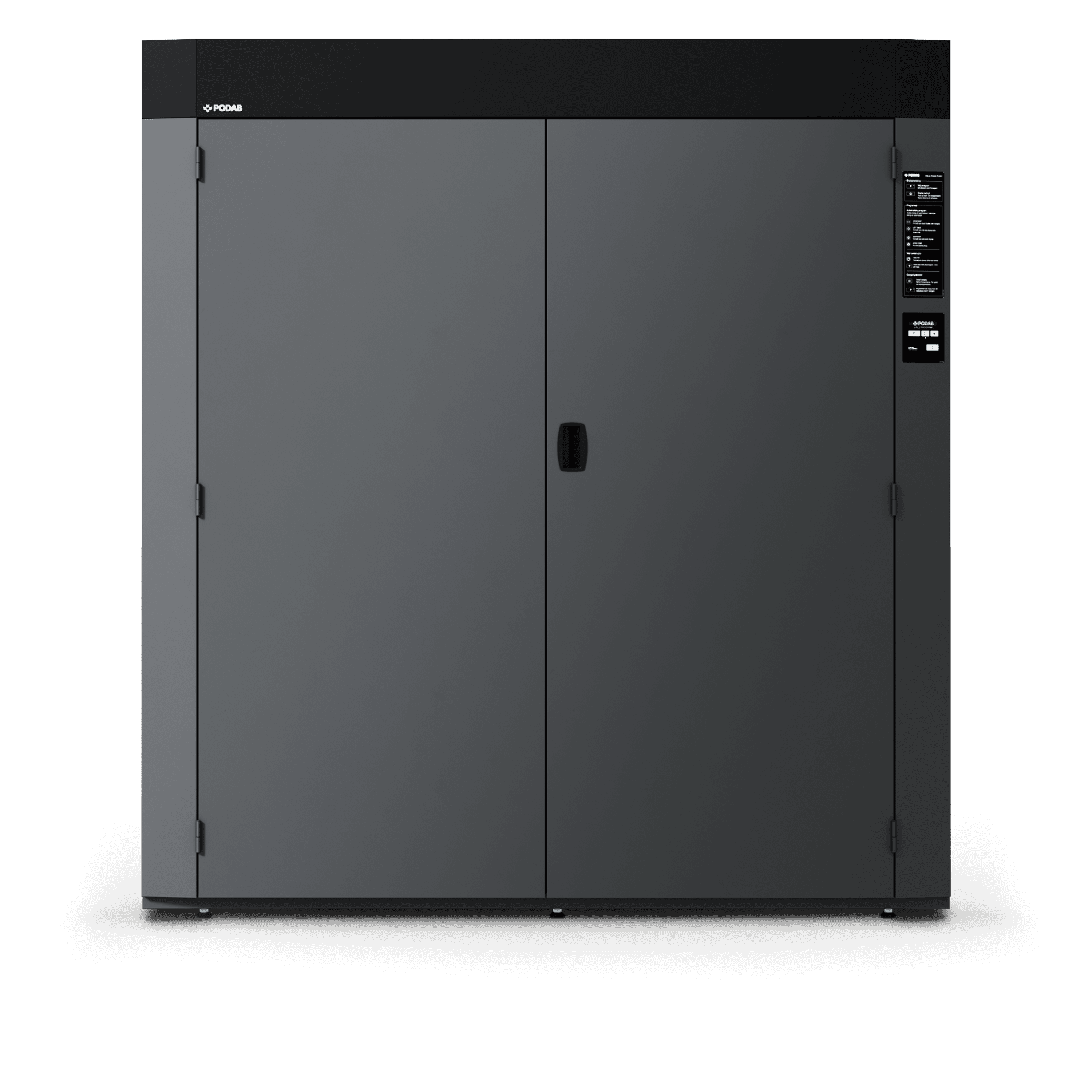

ProLine TS93 E

Name: ProLine TS93 E
Brand: PODAB America
Availability: OutOfStock

The ProLine drying cabinet series offer versatile, energy-efficient drying solutions for various industries. Designed to handle everything from workwear and uniforms to PPE, they provide gentle, effective drying without mechanical wear. Ideal for professional and industrial use, ensures fast, reliable results while preserving fabric quality.

The ProLine TS93 E drying cabinet offers cutting-edge efficiency and reliability for large-capacity industrial laundry needs. With unmatched capacity of up to 35 lbs / 16 kg and a unique 100 ft / 32 m hanging length, it provides exceptional flexibility for drying various garments and textiles. Its robust construction ensures longevity, making it ideal for commercial dry cleaners, hotels, shared laundry spaces, and industrial facilities.

location_onFind a reseller

Product number: 233001

Main data

Product type: Drying cabinet
Product name: ProLine TS93 E
Product No. 3P electrical connection: 233001
Product No. 1P electrical connection: 233002
Warranty: Three-year limited
Type: Air vented
Hanging length, ft/m: 105/32
Capacity (dry weight), lb/kg: 40/18
Interior capacity, cu ft/l: 73,1/2070
Energy consumption, kWh: 6.4
Drying capacity, oz/min / g/min: 2.9/81
Noise emission, dB(A): 65
Prepared for payment system: Standard
Reversable swinging hanging rail system: Standard

Electrical Installation 3P

Supply voltage, V: 208 V, 3P, 60Hz
Electric heating, W: 9000
Electric fan, W: 450
Total effect, W: 9450
Protection, A: 40

Electrical installation 1P

Supply voltage, V: 240 V, 1P, 60Hz
Electric heating, W: 9000
Electric fan, W: 525
Total effect, W: 9525
Protection, A: 60

Specifications

Outer: WxDxH, in: 71x31.5x77
Outer: WxDxH, mm: 1800x800x1955
Shipping dimensions: WxDxH, in: 75x31x42
Shipping dimensions: WxDxH, mm: 1915x790x1060
Weight, lb: 518
Weight, kg: 235
Shipping weight, lb: 606
Shipping weight, kg: 275

Ventilation

Outlet exhaust, Øin/mm: 6/152
Outlet airflow, cfm/m³/h: 210/350
Max pressure drop, psf/Pa: 5.43/260
Max airflow (at 0% pressure), cfm/m³/h: 353/600

Manuals

picture_as_pdf
User manual TS93 E
downloadDownload quick_reference_allPreview

Product sheet

picture_as_pdf
Product sheet ProLine drying cabinet TS93 E
downloadDownload quick_reference_allPreview

Product booklet

picture_as_pdf
Booklet 2025
downloadDownload quick_reference_allPreview

Key features

Capacity & design
- 35 lbs dry weight
- 73.1 cu ft interior
- 105 ft hanging length
- Rotating hanging rail (90°) with doors opening 190°
Advanced drying system
- Automatic & manual programs
- Preset start time
- Temperature & humidity tracking
- Electric heated air drying
Efficiency & safety
- Energy-efficient
- Gentle drying without mechanical action
- Double overheat protection
- Cool down mode at program end
Durability & versatility
- Powder-coated galvanized steel
- Sturdy construction
- Interior lighting
- Adjustable feet
- Versatile drying options for delicate and hard-to-dry textiles

Unrivaled capacity

With the ability to accommodate up to 35 lbs / 16 kg of laundry in a single cycle, the ProLine TS93 E sets the standard for high-capacity drying cabinets. Its spacious interior and unique 100 ft / 32 m hanging length offer unparalleled flexibility, allowing for the efficient drying of a wide range of garments and textiles. The ProLine TS93 E is the ultimate solution for all your industrial drying needs.

Energy-efficient laundry operations

Despite its impressive capacity, the ProLine TS93 E is remarkably energy-efficient, consuming just 6.4 kWh per dry cycle. This not only reduces energy costs but also minimizes its environmental impact, making it a sustainable choice for any laundry operation.

Robust construction

Built to withstand the rigors of regular use, the ProLine TS93 E features a sturdy construction that ensures reliability and longevity. Its durable design makes it ideal for commercial dry cleaners, hotels, shared laundry spaces and industrial facilities where reliability is paramount.

Features a Humidity Tracking System (HTS) with sensors that monitor both temperature and humidity. It detects moisture levels and automatically stops the drying process once the laundry reaches optimal dryness, ensuring time and energy efficiency.

Humidity and temperature tracking

NFPA compliant

Revolutionizing firefighter safety

Our drying cabinet embodies a fresh perspective on firefighter safety, prioritizing their well-being by reducing health risks associated with damp gear. Aligned with NFPA standards, it exceeds requirements, prolonging gear lifespan while promoting resource efficiency. Its innovative features represent a paradigm shift in safety, reflecting a commitment to invest in cutting-edge solutions for a safer future, acknowledging firefighters’ dedication to community protection.

All ProLine drying cabinets are NFPA compliant.

arrow_right_altLearn more about NFPA
